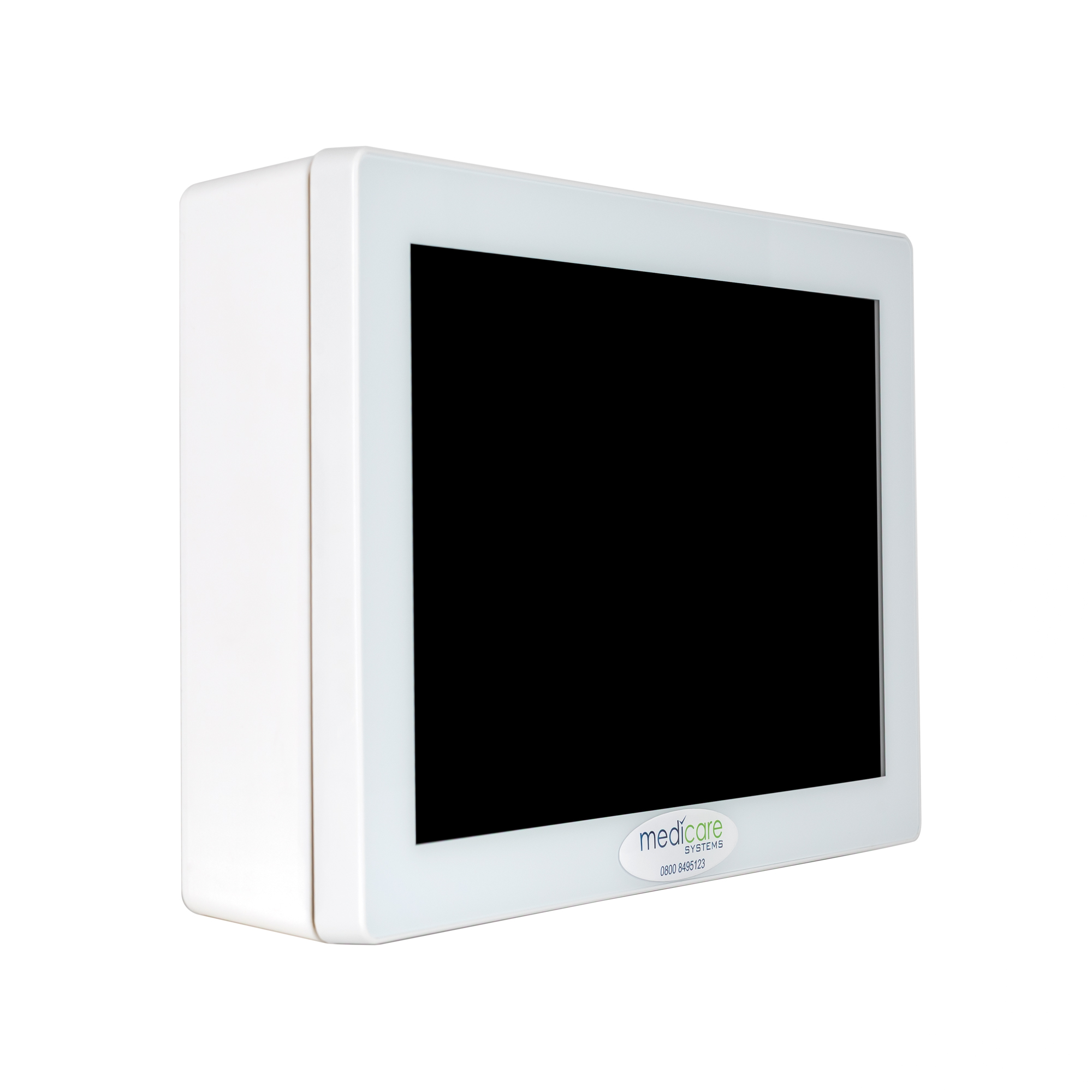

HTM8610L 10-inch Touchscreen Display Panel

The HTM8610L 10-inch display requires 230v socket outlet and a network point within one metre.

This 10-inch panel is a Linux based solution, the equipment inludes Medicare’s radio interface and software to show events locally and broadcast them system-wide.

PRODUCT SPECIFICATIONS

DIMENSIONS (H x W x D)

178mm x 260mm x 70mm

WEIGHT

500g

COMPLIANCE

R & TT, EMC

Low voltage safety directives, RED

POWER

Plug top transformer supplied thats fits into a socket outlet 230 a.c

DISPLAY

10-inch colour backlit screen

HTM compliant screen colours

Large font clear text display

Wide angle viewing

Option of numeric or alphanumeric screen

FUNCTION BUTTONS

Control buttons on touchscreen

Volume adjust – up/down/mute

Menu – to access advanced functions
