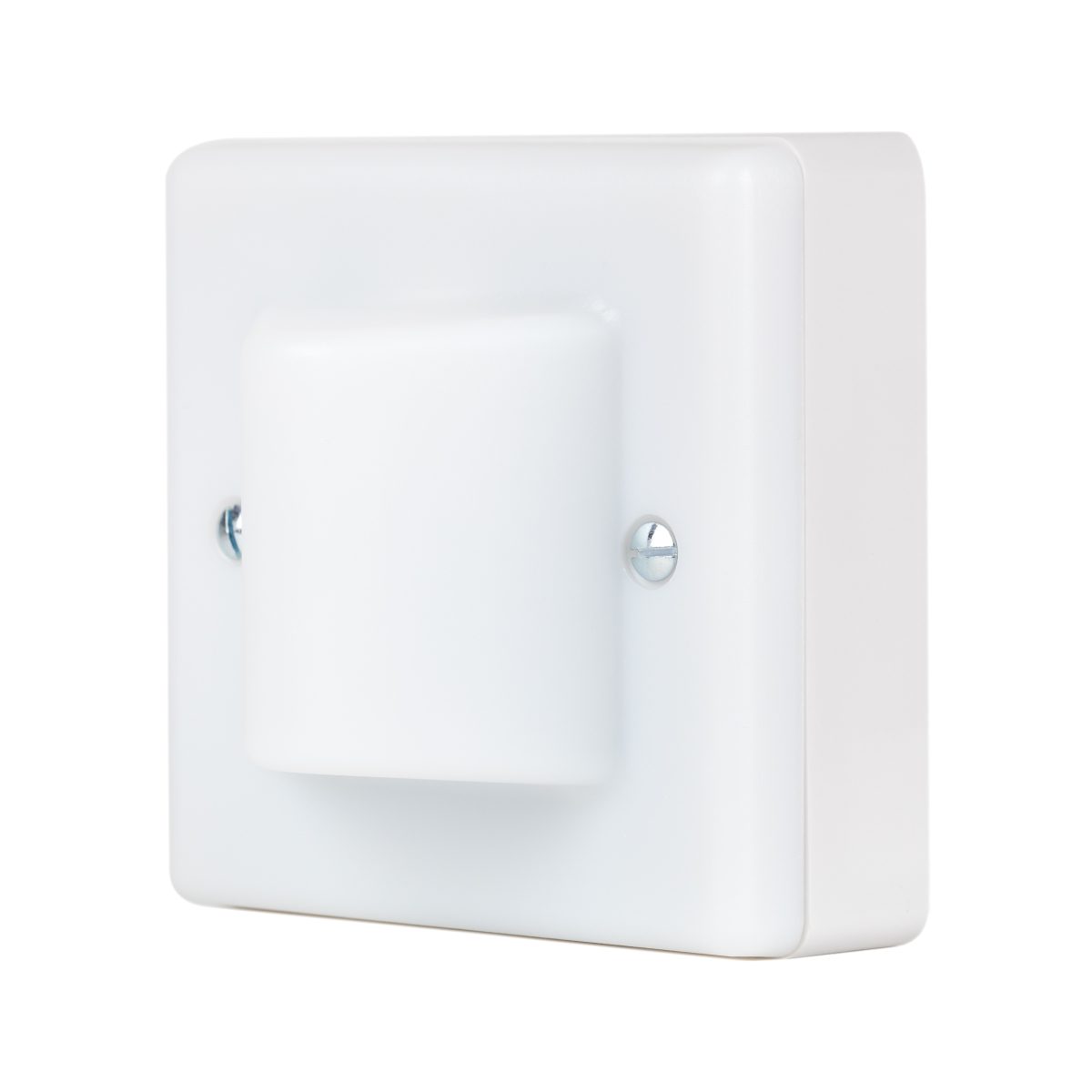

HTM6032 Over Door Light
Medicare’s ODLs can be paired with a number of different call points and are all controlled by wireless technology.
The light will illuminate orange, green, flashing yellow, flashing red or flashing blue depending on the call type that has been activated by the paired call point/s.
A built-in sounder is also provided which can be optionally activated to provide a non intrusive local audible alarm.
PRODUCT SPECIFICATIONS
ENCLOSURE
High impact styrene
DIMENSIONS (H x W x D)
85mm x 85mm x 36mm
WEIGHT
51g
OPERATIONAL MODES
Pairs with either a single or multiple call points within a zone and operates on a follow-me light format
Built in operational sounder
RADIO SPECIFICATIONS
433.92MHz
CONFORMITY
Conforms to European EN 301 489-3 and ETSI EN 300 220-3 (for ERP@10mW) RED
POWER
A 12 volt dc power supply unit is required using a 2 core cable with 0.75mm standard flexible conductors
Circuits should be wired in a ring circuit, allowance should be made for cable length and volt drop
FIXING & INSTALLATION

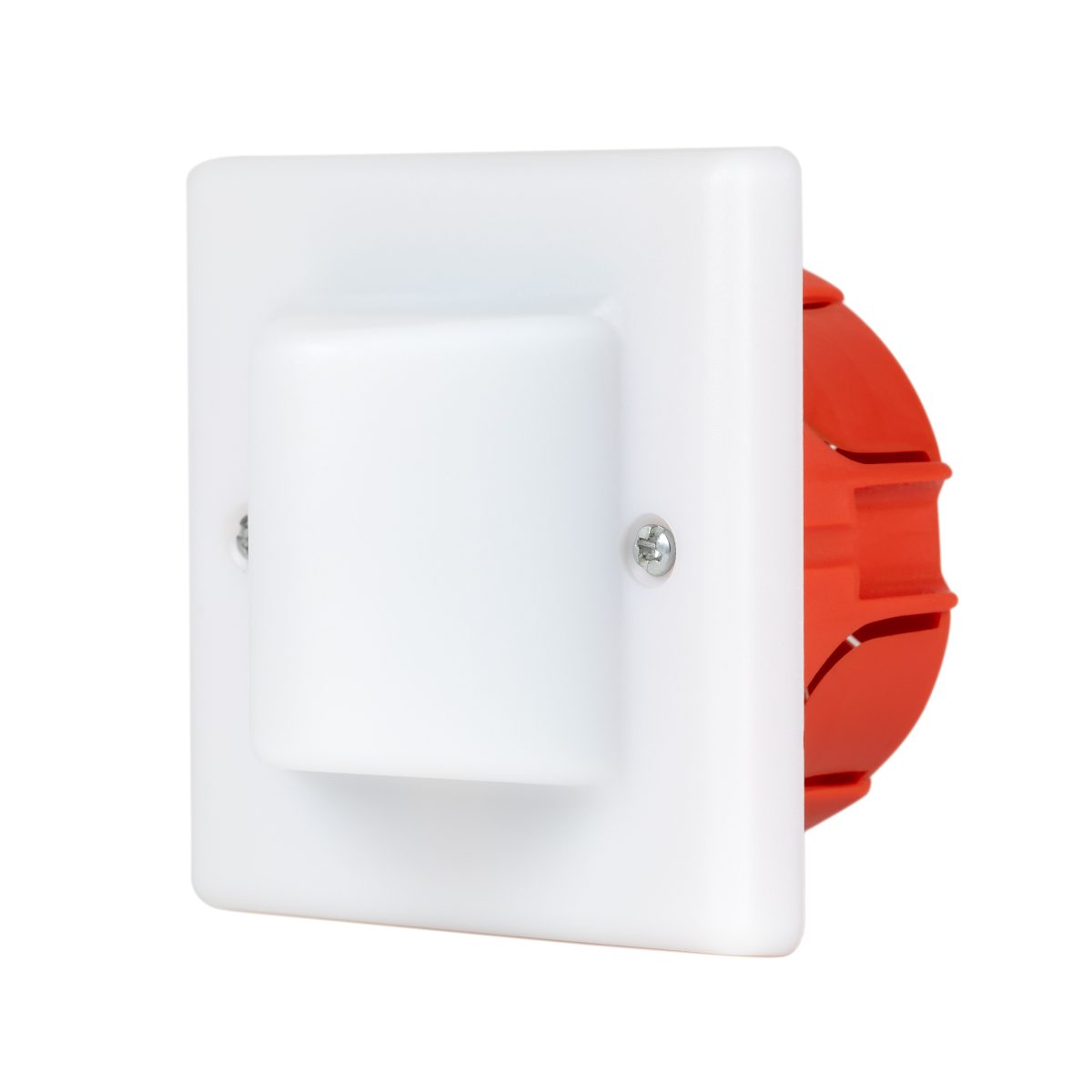

Each over door light requires a 1 gang dry line box
